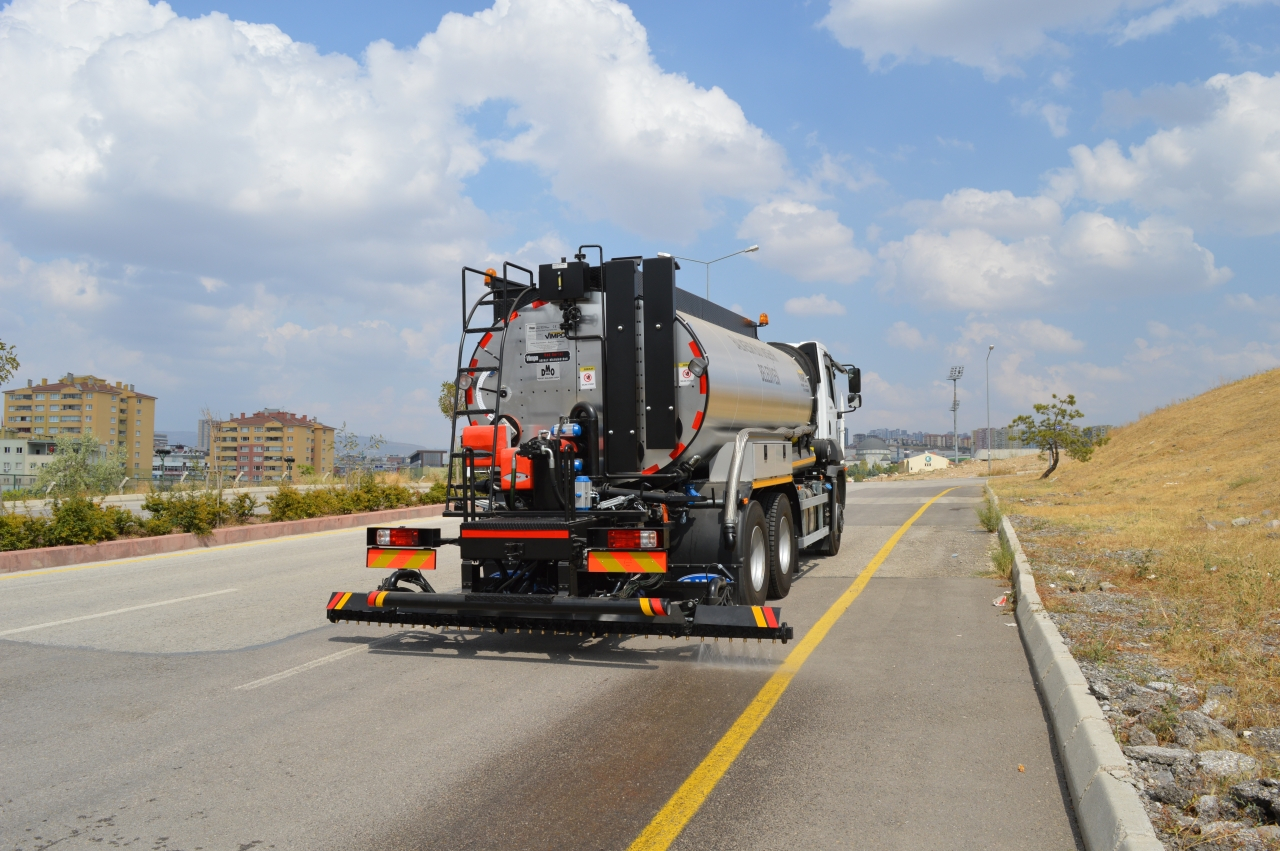

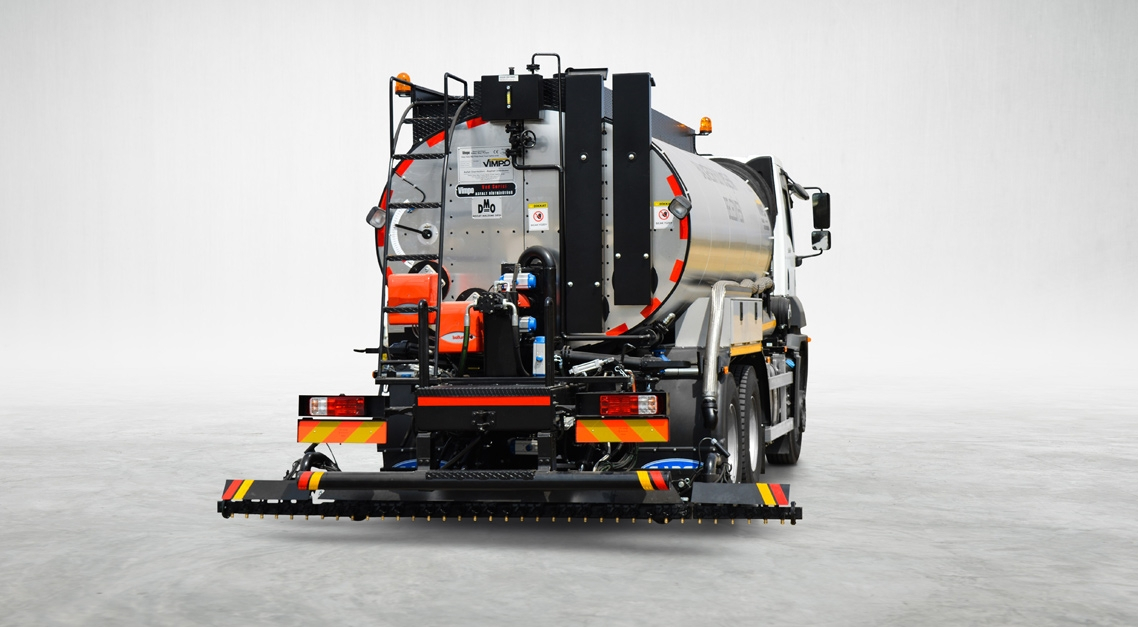

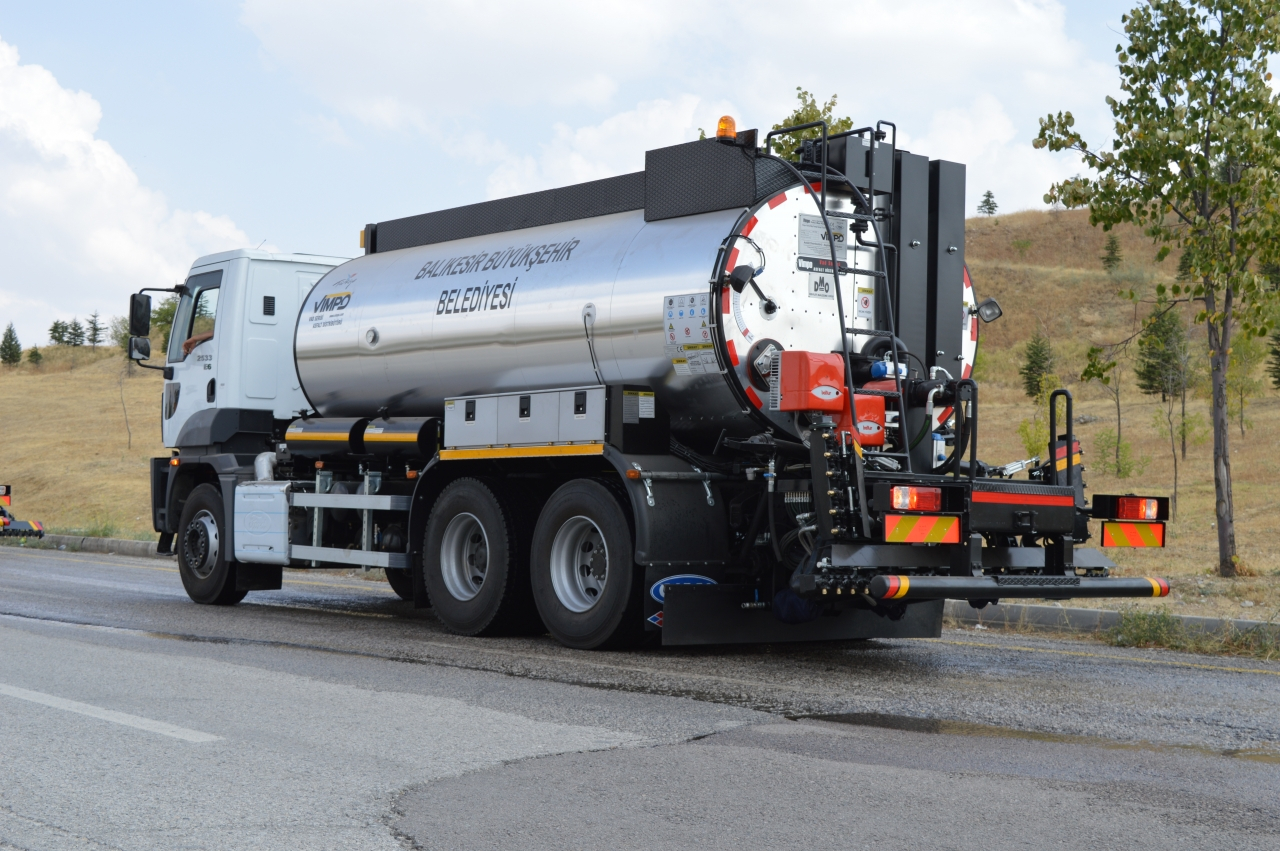

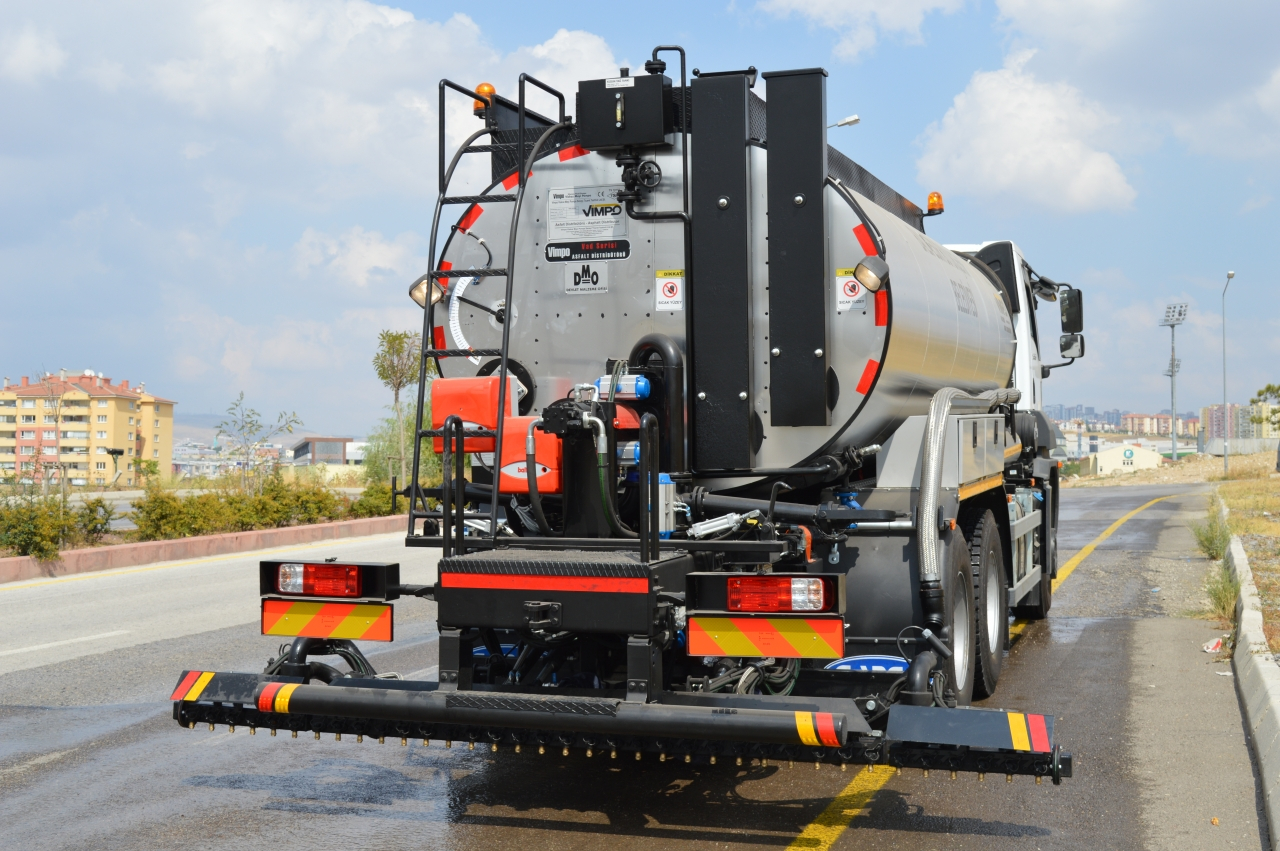

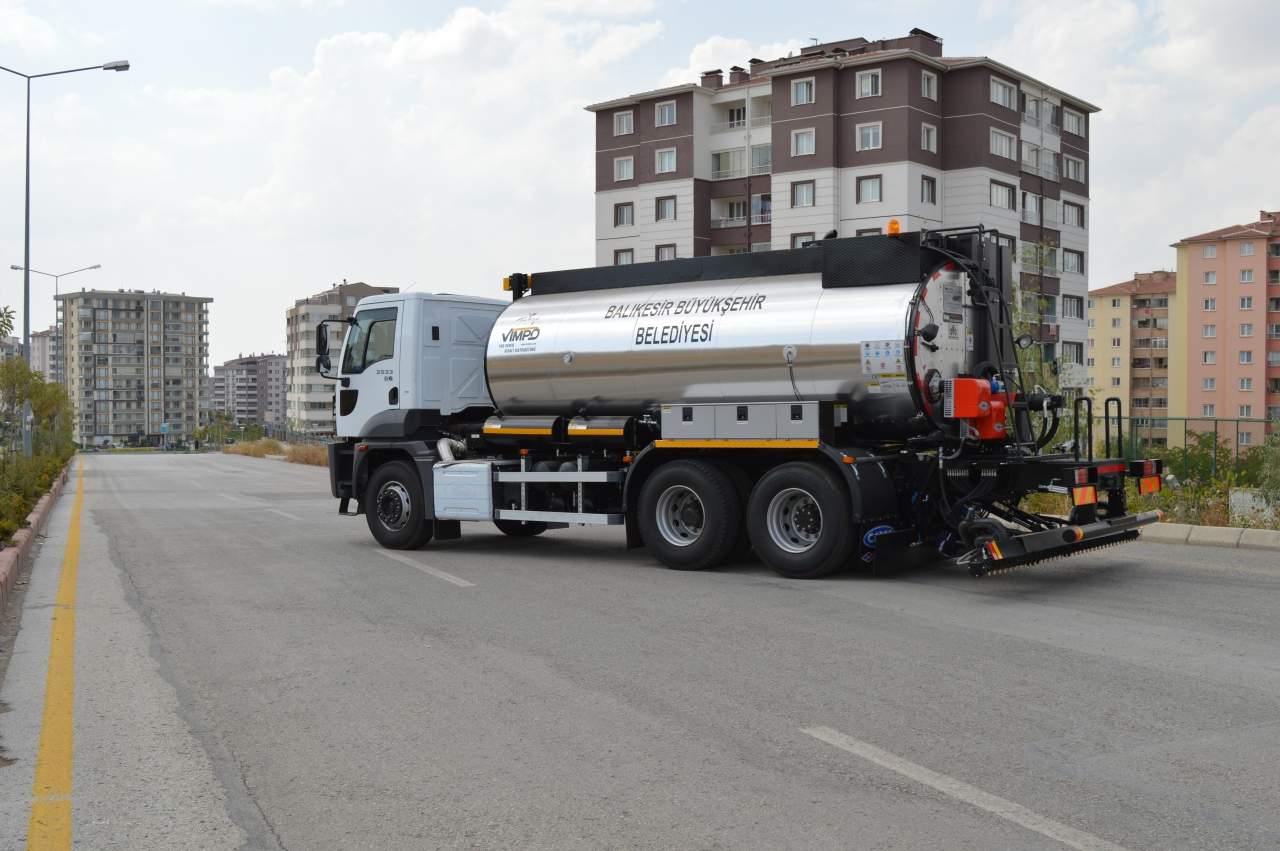

VAD 3600A Asphalt Distributor

VAD Series Asphalt Distributors and Emulsion Sprayers by Vimpo, a comprehensive solution for precision asphalt distribution and emulsion spraying in road construction and maintenance. Engineered with cutting-edge technology, these versatile machines offer seamless functionality, delivering precise and uniform application of asphalt and emulsion materials. The VAD Series ensures optimal performance and efficiency, boasting advanced features that streamline the distribution process.

Equipped with user-friendly controls and precision systems, these distributors and sprayers guarantee accurate and controlled spraying, enhancing road surface durability and quality. Whether it’s asphalt distribution or emulsion spraying, Vimpo’s VAD Series sets the standard for excellence, providing unparalleled reliability and performance in road construction. Elevate your projects with the VAD Series and experience the epitome of precision and innovation in asphalt distribution and emulsion spraying technology.

VAD 3600A Proportional Asphalt Distributor

Difference of VAD3600A then VAD5400 model is that VAD3600A has total spreading width of 3600mm and spray bar movement is pneumatic. Operator enters the quantity of material to be spread on panel and system reads data from the radar, asphalt pump and spray bar and adjusts the optimum pump flow rate. As with the VAD5400, the VAD3600A can be used to display all the values instantly, and the backward statistics of the spreading.

VAD 3600A Asphalt Distributor Technicial Features

Spray Width	Up To 3000mm Spray Width
Spray Groups	600mm Spray Groups
Pump Type	VN Series Bitumen Pump
Bars	Foldable Extension Bars
Control	Digital Control
Valve Control	Pneumatic Control
Heating System	Diesel Burner Heating
Control Panel	Front And Rear Control Panel

Optional Features

Spyrey Bar	Thermal Oil Heated Spray Bar
Thermal Oil Heater	On Board Thermal Oil Heater
Engine	External Diesel Engine
Camera	Rear View Camera
Control	Automatic Proportional Spraying

VAD 3600A Asphalt Distributor General Features

Capacity	8.000 - 13.500 Liters
Isolating Sheet	Aluminium Sheet 1mm
Isolating Material	Stone Wool 50mm
Power	Vehicle PTU (Power Transmission Unit)
VAD 3600A / Controls	Hydrostatic, Digital Control
Pump Type	3”VA Pump (60m3/h)
Spray Bar Span	2400 - 3600mm
Spreading Lane Width	600mm, 6 Groups of Pneumatics
Spray Bar Drive	Pneumatic - Electric On-Off
Valve Controls	Pneumatic - Electric
Heating System	Two Burners (min 190kw, max 310kw)
Drive Type	Hydrostatic Control

Asphalt Distributor Transport

VAD Series Asphalt Distributors are designed according to the request of our customers to be suitable for their own countries’ new or second-hand trucks. So, the high truck import expenses will be reduced. VAD Series can be put pre-montaged in to a 40ft container thanks to this design transportation costs are reduced significantly and it took only 5-7 days for the installation and training.

Asfalt Distribütör Transport

VAD 3600A Asphalt Distributor SECTIONS

Optional PMB (Polymer Modified Bitumen) Compatible System

Polymer Modified Bitumen is specially designed for the areas and firms where the bitumen is used. Thanks to the hot oil boiler installed in the bitumen tank, the bitumen tank and the whole installation are heated and the material is protected and laid at high temperatures.

The PMB material can preferably be applied automatically or manually by being one of the leading properties of its class.

Pump Function

With dedicated Asphalt Distributor Pump, critical functions can be performed with valves which are located both inside the pump and at the piping. Pneumatic actuators can be controlled directly from the cabin.

• Re-Suction,
• Tank Filling and Tank Circulation,
• Automatic / Manual Spraying,
• Tank Discharge,
• Intermediate Pump,
• System Cleaning.

Fully Automatic Spreading

Specific to the models of VAD5400 and VAD3600A with precise flow adjustment and specially designed spray-bar 5400mm'de perfect spreading can be made. The system works by reading the data such as vehicle speed and spread width by providing instantaneous pump flow for the desired amount of spreading.

Spreading width can be increased or decreased during operation, the operator can accelerate or slow down according to the condition of the road, while the operator is focus on driving system can start, maintain and finish spreading.

Asphalt Pump

The Asphalt Pump is mounted on a plate which is welded to the back plate of the tank. The pump has two intake lines and two discharge lines. The body of the asphalt pump is designed to remain in the tank so that freezing in the pump is prevented.

Thanks to the internal valves on the pump, the system performs all functions without the need for complicated piping system. Maintenance and cleaning are provided much more quickly and easily.
